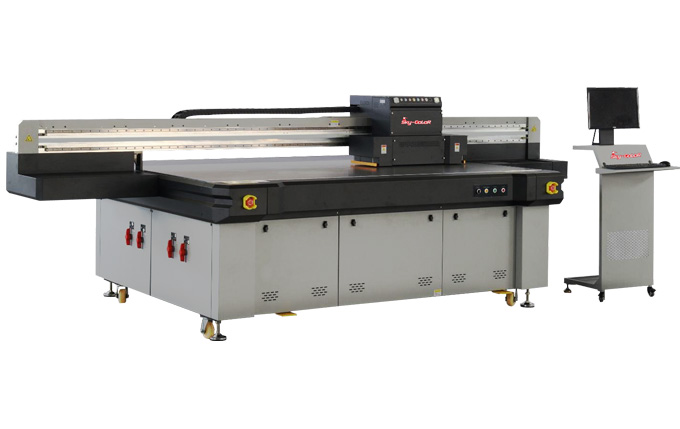

At present, the popularity of Skycolor large format uv flatbed printer is getting higher and higher. Skycolor large format uv flatbed printer company have compiled some maintenance information about common failures for reference.

1. Skycolor large format uv flatbed printer cannot detect the paper:
①The paper measuring device is dirty, so wipe it with a cotton swab moistened with clean water
②The paper tester is not installed and needs to be reinstalled
③The paper tester is broken, the paper tester needs to be replaced
④The trolley board is broken and needs to be replaced.

2. The small frame hits the left frame when Skycolor large format uv flatbed printer is turned on
① The grating sensor is dirty and needs to be cleaned.
②The grating sensor is broken and needs to be replaced.
③If the data cable is not plugged in properly, plug it in several times.

3. The printed picture size is incorrect when printing on Skycolor large format uv flatbed printer
Adjustment method: First press the auxiliary function menu → the effective standard menu → the drawing vertical axis → change the default value of 83.82. Note that the figure is longer, the figure is increased, and the figure is smaller, the figure is reduced (Note, change with a decimal when changing, Change by 0.1 per millimeter) After changing, be sure to save.

4. Pause during printing
①Pause left and right during printing, slow printing
Solution:Modify the ECP in the computer BIOS.
②Return to the cleaning platform and pause during printing
Solution:Turn off automatic ink wiping.

5. Printed size does not match the actual size
First check if there are any problems with the picture. If it is excluded, the longitudinal axis of the drawing will be approved in Skycolor large format uv flatbed printer.
The specific method is: auxiliary function menu/approval menu/drawing longitudinal axis test, and then input the measured value of the printed screen. Repeat the above process several times until the measured value reaches 83.82mm.
